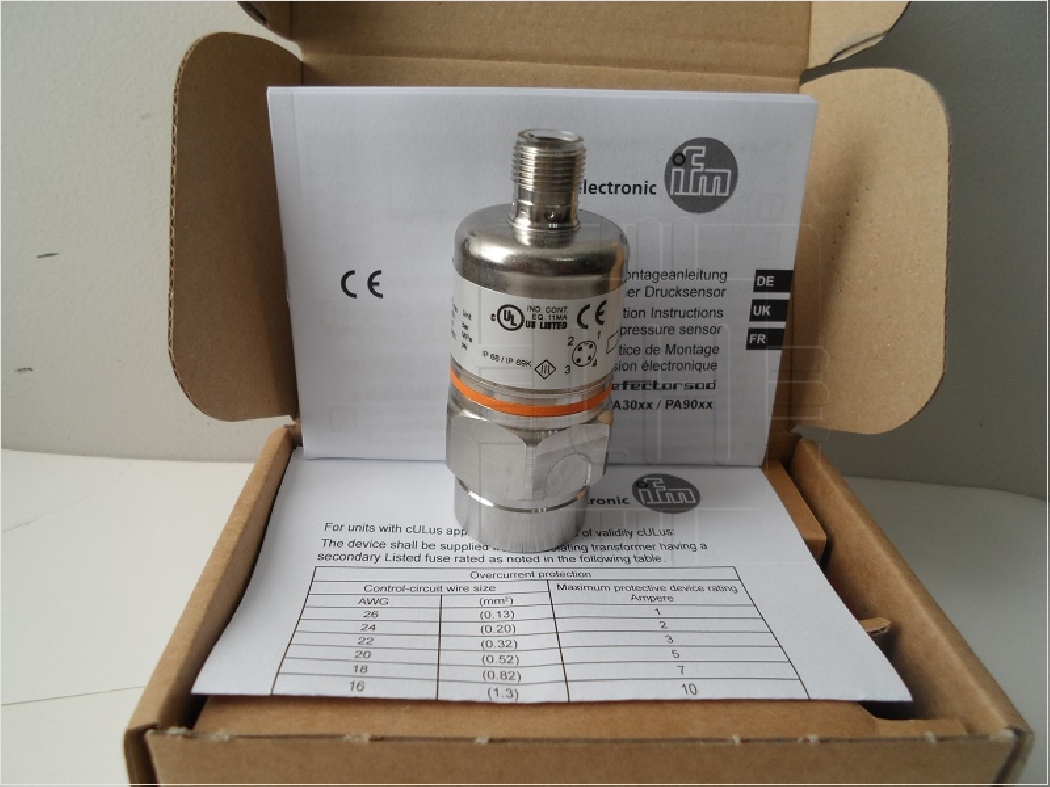

PA3021 |‌ PA-250-SBR14-A-ZVG/US/ /V, SENSOR PRESSURE

PA3021 |‌ PA-250-SBR14-A-ZVG/US/ /V, SENSOR PRESSURE

DESCRIPCIÓN

Sensor Presure

Datasheet
Application: Type of pressure: relative pressure , Liquids and gases, Use in gases at pressures > 25 bar only after contacting the manufacturer ifm
Process connection: G ¼ I
Operating voltage: 9.6...32 V DC
Electrical design: DC
Output function: 4...20 mA
Measuring range: 0...250 bar
Pressure rating: 400 bar
Bursting pressure min.: 850 bar
Characteristics deviation : < ± 0.25 (BFSL) / < ± 0.5 (LS)
Connection: M12 connector
Housing materials: stainless steel 316L / 1.4404; FPM (Viton); PA; EPDM/X (Santoprene)
Materials (wetted parts): stainless steel (303S22); ceramics; FPM (Viton)
Medium temperature: -25...90 * °C
Ambient temperature: -25...80 °C
Protection: IP 68 / IP 69K
Accessories (to be ordered separately): Socket, Mounting accessories

FICHA TECNICA
Data Sheet PA3021
